Multiple memberOf overlays
by John C. Pfeifer 05 Aug '25

05 Aug '25

I am in the process of converting an existing LDAP infrastructure to OpenLDAP. I have a case where it would be convenient for two different objectClasses to map into the memberOf attribute. Is it possible to define two overlay configs or will they end up fighting each other over the memberOf attribute? For instance: dn: olcOverlay={5}memberofA,olcDatabase={2}mdb,cn=config objectClass: olcOverlayConfig objectClass: olcMemberOf olcOverlay: {5}memberofA olcMemberOfDangling: error olcMemberOfRefInt: FALSE olcMemberOfGroupOC: objectClassA olcMemberOfMemberAD: member olcMemberOfMemberOfAD: memberOf dn: olcOverlay={6}memberofB,olcDatabase={2}mdb,cn=config objectClass: olcOverlayConfig objectClass: olcMemberOf olcOverlay: {6}memberofB olcMemberOfDangling: error olcMemberOfRefInt: FALSE olcMemberOfGroupOC: objectClassB olcMemberOfMemberAD: member olcMemberOfMemberOfAD: memberOf // John Pfeifer Division of Information Technology University of Maryland, College Park

4 3

Problem with "force user to password reset at first login
by Rajagopal Rc 30 Oct '23

30 Oct '23

Hi, I am trying to force users to change their password at first login or after password reset by administrator. Tried following: 1)Password policy 'pwdMustChange TRUE' doesn't seems to be working as non of the users get prompt to change their password at first login. 2) used the 'pwdReset TRUE' attribute in users attributes, and it won't prompt to change the password and didn't allow to login i observe below messages in log "slapd[12684]: connection restricted to password changing only slapd[12684]: send_ldap_result: err=50 matched="" text="Operations are restricted to bind/unbind/abandon/StartTLS/modify password" slapd[12684]: conn=1053 op=1 SEARCH RESULT tag=101 err=50 nentries=0 text=Operations are restricted to bind/unbind/abandon/StartTLS/modify password" Please help me configure the option to force all users to change their password at first login or after pwd reset by administrator. Thanks & Regards Raj Tata Consultancy Services Mailto: rajagopal.rc(a)tcs.com Website: http://www.tcs.com ____________________________________________ Experience certainty. IT Services Business Solutions Consulting ____________________________________________ =====-----=====-----===== Notice: The information contained in this e-mail message and/or attachments to it may contain confidential or privileged information. If you are not the intended recipient, any dissemination, use, review, distribution, printing or copying of the information contained in this e-mail message and/or attachments to it are strictly prohibited. If you have received this communication in error, please notify us by reply e-mail or telephone and immediately and permanently delete the message and any attachments. Thank you

5 9

Q: UNKNOWN attributeDescription "AUDITCONTEXT" inserted.
by Ulrich Windl 22 Jul '20

22 Jul '20

Hi! After systemd tearing down one of our LDAP servers I noticed the following message when the server was restarted: slapd[10525]: UNKNOWN attributeDescription "AUDITCONTEXT" inserted. The next line logged was: slapd[10525]: olcServerID: value #1: SID=0x002 (listener=ldap://...:389) (the server is that of SLES12 SP4, 2.4.41 from opensuse-buildservice) The server is one of three MM servers that all have the same configuration and the same version. The schema knows in olcAttributeTypes (olcSchemaConfig): ( 1.3.6.1.4.1.4203.666.11.5.1.30 NAME 'auditContext' DESC 'DN of auditContainer' SYNTAX 1.3.6.1.4.1.1466.115.121.1.12 SINGLE-VALUE NO-USER-MODIFICATION USAGE dSAOperation ) What I'l like to know: Is there any thing I could fix in the configuration to make the message go away, or is it some software issue in slapd? Regards, Ulrich

4 10

Question about OpenLDAP and rwm overlay
by Vandenburgh, Steve Y 17 Jan '20

17 Jan '20

I'm attempting to use OpenLDAP as a proxy to an Active Directory domain. Using the ldap backend, I'm able to configure the proxy and that configuration seems to be working well. But account entries are frequently moved from ou to ou in a domain and Microsoft permits the bind DN to be a userPrincipalName attribute value of the entry instead of the full DN of the account; this features avoids having to make many bind DN application configuration changes. With just the ldap backend configured, OpenLDAP rejects the userPrincipalName (UPN) bind DN as an invalid DN. To work around this error, I was trying to see if I could use the rwm overlay to detect the UPN and convert to the actual domain entry DN using an attribute map. If I use the form mail=UPN the map works as expected; however, if I only provide the UPN as the bind DN, OpenLDAP still rejects it as an invalid DN. I suspect that the rwm overlay manipulations to not take effect until after the bind DN syntax is checked. I wanted to confirm my suspicion and see if any one else has been able to get a UPN-based bind to work through OpenLDAP. For reference my slapd.conf configuration is below: ### Schema includes ########################################################### include /etc/openldap/schema/core.schema include /etc/openldap/schema/cosine.schema include /etc/openldap/schema/inetorgperson.schema include /etc/openldap/schema/misc.schema include /etc/openldap/schema/nis.schema ## Module paths ############################################################## modulepath /usr/lib64/openldap/ moduleload rwm # Main settings ############################################################### loglevel 8 sizelimit unlimited idletimeout 600 writetimeout 30 allow bind_v2 pidfile /var/openldap/mycompany/var/slapd.pid argsfile /var/openldap/mycompany/var/slapd.args logfile /var/openldap/mycompany/logs/access TLSCertificateFile /var/openldap/mycompany/certs/Server.pem TLSCertificateKeyFile /var/openldap/mycompany/certs/Server.key TLSCACertificateFile /var/openldap/mycompany/certs/ServerCA.pem ### Rewrite rules ############################################################# # Bind with UPN instead of full DN: we first need # an ldap map that turns attributes into a DN (the # argument used when invoking the map is appended to # the URI and acts as the filter portion) overlay rwm rwm-suffixMassage "" "dc=mycompany,dc=com" rwm-rewriteMap ldap attr2dn "ldaps://mycompany.com/ou=Domain%20Users,dc=mycompany,dc=com?dn?sub" bindwhen=now version=3 binddn="CN=mybindacct,ou=Domain Users,DC=mycompany,DC=com" credentials=****** # Then we need to detect UPN DN # note that the rule in case of match stops rewriting # In case we are mapping virtual # to real naming contexts, we also need to rewrite # regular DNs, because the definition of a bindDN # rewrite context overrides the default definition. rwm-rewriteContext bindDN rwm-rewriteRule "^[^=,]+(a)mycompany.com$" "mail=$0" ":" rwm-rewriteRule "^mail=[^,]+(a)mycompany.com$" "${attr2dn($0)}" ":@" ### Database definition (Proxy to AD) ######################################### database ldap readonly yes protocol-version 3 rebind-as-user uri "ldaps://mycompany.com" suffix "dc=mycompany,dc=com" Thanks, Steve Vandenburgh This communication is the property of CenturyLink and may contain confidential or privileged information. Unauthorized use of this communication is strictly prohibited and may be unlawful. If you have received this communication in error, please immediately notify the sender by reply e-mail and destroy all copies of the communication and any attachments.

6 9

Postgres and Attributes
by Mark Murawski 13 Dec '19

13 Dec '19

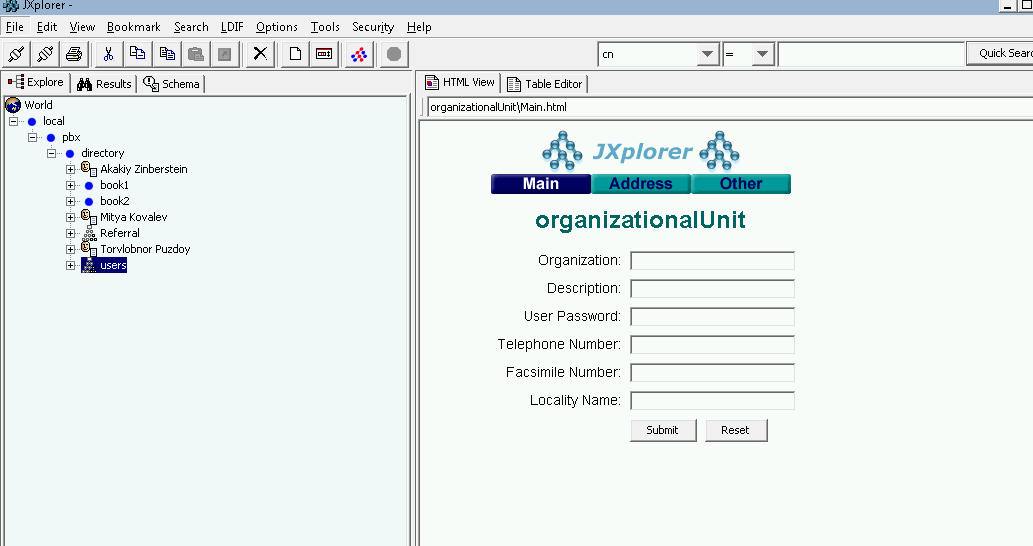

Hi! Attachments: www.kobaz.net/misc/slapd.zip www.kobaz.net/misc/ldap.sql www.kobaz.net/misc/attributes.png Disclaimer: Let me first start out saying that this isn't my first run around the block. I understand that this is experimental and I accept the risks and issues that might come with back-sql. I started with the backend examples located in: servers/slapd/back-sql/rdbms_depend/pgsql ... and then started adding support for things like organizationUnit that are not included in the test db Attached is my ldap postgres database. Attached is my ldap /etc/ldap/slapd I'm aware that passwords/etc are in there, but it's not a big deal. It's just testing stuff on an internal system. The issue I'm having: - Attributes are not coming back when requesting ldap information or doing ldap search (Screenshot) Also noted is that the sample inetOrgPerson entries do not show any attributes like surname, despite them being stored in the postgres database in what looks like the correct format (exactly the same as the test db import) -- The organizationUnit has been added like this: 1-users-ou.ldif ----- dn: ou=users,dc=directory, dc=pbx, dc=local ou: users description: holds users of the directory objectClass: organizationalUnit ----- ldapadd -x -D "cn=admin,dc=directory, dc=pbx, dc=local" -w 'asdf' -v -f 1-users-ou.ldif Despite having specified 'description', this has not been added to the database as shown in the export. The organizational_unit table looks like this: id | ou | description ----+----+------------- 1 | | Looking at the postgres query logs, slapd has made no attempt whatsoever to set the description field, despite this field being mapped in the attributes as shown in the export. Also here for quick reference: Table: ldap_attr_mappings -[ RECORD 16 ]+ id | 20 oc_map_id | 5 name | description sel_expr | organizational_unit.description sel_expr_u | from_tbls | organizational_unit join_where | add_proc | UPDATE organizational_unit SET description=? WHERE id=? delete_proc | SELECT 1 FROM organizational_unit WHERE ou = ? AND ID=? param_order | 3 expect_return | 0 Can someone shed some light on what's wrong here?

2 2

Is there a way to set a preference on entries with multiple userPassword attributes?
by Jeremy Diaz 03 Dec '19

03 Dec '19

Hello, Currently I have ldap entries with 2 userPassword attributes. One is a regular SHA password which the other one delegates to sasl. However this results in all entries binding through sasl rather than locally. I need some entries to default to sasl and other entries to default to SHA but still failover to the other password entry. Is this possible through openldap? Thanks, Jeremy -- Jeremy Diaz Rex Consulting, Inc 5652 Florence Terrace, Oakland, CA 94611 email: jeremy.diaz(a)rexconsulting.net web: [ http://www.rexconsulting.net/ | http://www.rexconsulting.net ] phone, toll-free: +1 (888) 403-8996 EXT: 5 The information transmitted is intended only for the person or entity to which it is addressed and may contain confidential and/or privileged material. Any review, retransmission, dissemination or other use of, or taking of any action in reliance upon, this information by persons or entities other than the intended recipient is prohibited. Rex Consulting, Inc. has been a California Corporation since 2001.

2 2

acl help access to 'own' attributes
by Marc Roos 30 Nov '19

30 Nov '19

Can anyone help how I should make the acls that allows users[2] access attributes of ldap entries[1] that have themselves listed in the attribute value sendmailMTAMapValue Something like: Access to children? ou=xxxx,ou=dddd,ou=cccc,dc=bbbb,dc=aaaa,dc=local filter=(sendmailMTAMapValue=VAR1) attrs=sendmailMTAKey by uid=VAR1,ou=yyyy,ou=dddd,ou=cccc,dc=bbbb,dc=aaaa,dc=local read [1] dn: sendmailMTAKey=test(a)example.com,ou=xxxx,ou=dddd,ou=cccc,dc=bbbb,dc=aaaa, dc=local objectClass: sendmailMTA objectClass: sendmailMTAMap objectClass: sendmailMTAMapObject objectClass: ritAdditionalInfo sendmailMTAMapName: virtuser sendmailMTACluster: mail sendmailMTAKey: test(a)example.com sendmailMTAMapValue: testuser [2] uid=testuser,ou=yyyy,ou=dddd,ou=cccc,dc=bbbb,dc=aaaa,dc=local

3 6

Does copying lock.mdb and data.mdb give syncrep errors?
by Marc Roos 29 Nov '19

29 Nov '19

Can I just copy the mdb databases to a different server, or are there 'unique' values inside?

2 1

own dynamic posix-group
by Stefan Kania 25 Nov '19

25 Nov '19

Hello, I try to set up my own posix-group to get a dynamic posix-group to use it to give filesystempermission. So I did the following: 1. Create to new objectclasses: ------------ objectclass (1.3.6.1.4.1.23456.1.2.1 NAME 'stkaPosixGroup' DESC 'advanced PosixGroup for dynamic use' SUP top AUXILIARY MUST ( cn $ gidNumber ) MAY ( userPassword $ memberUid $ description ) ) objectclass (1.3.6.1.4.1.23456.1.2.2 NAME 'stkaPosixAccount' DESC 'advanced PosixAccount for dynamic use' SUP posixAccount AUXILIARY MAY ( memberUID )) ------------ YES I know 23456 is not my ODI. It's still a test! 2. Then I configured the dynlist-overlay in slad.conf ------------ overlay dynlist dynlist-attrset groupOfURLs MemberURL ------------ 3. I created a new dynamic group: ------------ dn: cn=dynposix,ou=groups,dc=example,dc=net objectClass: groupOfURLs objectClass: stkaPosixGroup gidNumber: 5000 cn: dynposix memberURL: ldap:///dc=example,dc=net?memberuid?sub?(title=admin) ------------ 4. I added the new objectclass stkaPosixAccout to my users: ------------ dn: cn=Stefan Kania,ou=users,dc=example,dc=net objectClass: posixAccount objectClass: inetOrgPerson objectClass: organizationalPerson objectClass: person objectClass: stkaPosixAccount loginShell: /bin/bash homeDirectory: /home/skania uid: skania cn: Stefan Kania userPassword:: e1NTSEF9cVk4eDVEaVhmYTZxbEw4MDBnRTlkazdtVDd2TzVocUI= uidNumber: 10000 gidNumber: 10000 sn: Kania givenName: Stefan memberUid: skania title: admin ------------ 5. I set the attribute "title" for two users to "admin" and got ------------ root@ldapserver:/# ldapsearch -x -D cn=admin,dc=example,dc=net -W -LLL 'cn=dynposix' dn: cn=dynposix,ou=groups,dc=example,dc=net objectClass: groupOfURLs objectClass: stkaPosixGroup gidNumber: 5000 cn: dynposix memberURL: ldap:///dc=example,dc=net?memberuid?sub?(title=admin) memberUid: skania memberUid: ktom ------------ So my users are member of the group. 5. I use the sssd as ldap-client so I changed the configuration to: ------------ [sssd] config_file_version = 2 services = nss, pam domains = EXAMPLE [nss] filter_groups = root filter_users = root reconnection_retries = 3 [pam] reconnection_retries = 3 offline_credentials_expiration = 2 offline_failed_login_attempts = 3 offline_failed_login_delay = 5 [domain/EXAMPLE] ldap_schema=rfc2307 ldap_uri = ldap://ldapserver.example.net:389 ldap_search_base=dc=example,dc=net ldap_default_bind_dn=uid=sssd-user,ou=users,dc=example,dc=net ldap_default_authtok=geheim id_provider=ldap auth_provider=ldap chpass_provider = ldap ldap_chpass_uri = ldap://ldapserver.example.net:389 cache_credentials = True ldap_tls_cacertdir = /etc/ssl/zertifikate/demoCA ldap_tls_cacert = /etc/ssl/zertifikate/demoCA/cacert.pem ldap_id_use_start_tls = True ldap_group_object_class = stkaPosixGroup enumerate = true ------------ I added the line "ldap_group_object_class = stkaPosixGroup" I Know "enumerate = true" is not a good idea but it's still a test ;-) Now the tests: --------- getent group . . dynposix:*:5000: . . -------- The group will be listed but non of the members. So I did the following: -------- root@ldapserver:~# ldapsearch -x -D cn=admin,dc=example,dc=net -W -LLL 'cn=dynposix' dn: cn=dynposix,ou=groups,dc=example,dc=net objectClass: groupOfURLs objectClass: stkaPosixGroup gidNumber: 5000 cn: dynposix memberURL: ldap:///dc=example,dc=net?memberuid?sub?(title=admin) memberUid: skania memberUid: ktom -------- There are two memberUid entries. Now I did another test searching for "memberuid" -------- root@ldapserver:~# ldapsearch -x -D cn=admin,dc=example,dc=net -W -LLL 'memberuid=*' attrs dn dn: cn=Stefan Kania,ou=users,dc=example,dc=net dn: cn=Kater Tom,ou=users,dc=example,dc=net -------- As you can see, I only get the two users but not my group "dynposix" listed. When i do a "id ktom" I got: -------- root@ldapserver:~# id ktom uid=10001(ktom) gid=10000 groups=10000 -------- Also no group "dynposix" It looks like it is not possible to search for the attribute "memberUid" if it's assigned to a groupOfUrls. Does anyone has an idea where did something wrong? -- Stefan Kania

2 2

switching to containers, slapd tuning?
by Marc Roos 22 Nov '19

22 Nov '19

I have now setups with vm's with a local slapd and nscd for caching authentication requests. If I separate these processes eg. different container for slapd, different container for the application that does system authentication. I will not be able to share cache memory etc. I was wondering if I would ever be able to come near this performance with direct communication between slapd and the application (thus without something like nscd) and how to tune slapd.

1 0
